Product Summary

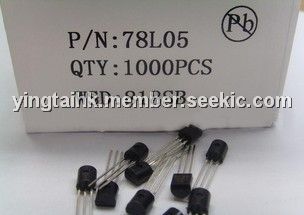

The 78L05 is a fixed-voltage integrated-circuit voltage regulator. It is designed for a wide range of applications.
Parametrics
Absolute maximum ratings: (1)Input voltage:30V; (2)Virtual junction temperature range:150℃; (3)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds:260℃; (4)Storage temperature range:–65℃ to 150℃.
Features
Features: (1)3-Terminal Regulators; (2)Output Current up to 100 mA; (3)No External Components; (4)Internal Thermal-Overload Protection; (5)Internal Short-Circuit Current Limiting; (6)Provided Pb-Free packages from the end of 2004.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 78L05 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
78L05AC |
Other |
|
Data Sheet |
Negotiable |
|
||||
