Product Summary

The SN74ALVCHR16245GR is a 16-bit noninverting bus transceiver. It is designed for 1.65V to 3.6V VCC operation. The device can be used as two 8-bit transceivers or one 16-bit transceiver.

Parametrics

Absolute maximum ratings: (1)supply voltage range:-0.5V to 4.6V; (2)output voltage range:-0.5V to VCC+0.5V; (3)input clamp current:-50mA; (4)output clamp current:-50mA; (5)continuous output current:±50mA; (6)continuous current through each VCC or GND:±100mA; (7)storage temperature range:-65℃ to +150℃.

Features

Features: (1)member of the Texas instruments widebus family; (2)operates from 1.65V to 3.6V; (3)Max tpd of 4.2ns at 3.3V; (4)all outputs have equivalent 26Ω series resistors, so no external resistors are required; (5)bus hold on data inputs eliminates the need for external pullup/pulldown resistors; (6)latch-up performance exceeds 250mA per JESD 17.

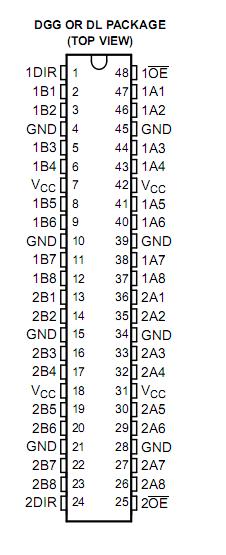

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN74ALVCHR16245GR
SN74ALVCHR16245GR
Texas Instruments
Bus Transceivers Tri-State 16-Bit Bus
Data Sheet
0-1: $0.84
1-25: $0.68
25-100: $0.61
100-250: $0.56
