Product Summary
The KA431ZTA is a three-terminal adjustable regulator with a guaranteed thermal stability overapplicable temperature ranges. The output voltage may beset to any value between VREF (approximately 2.5 volts)and 36 volts with two external resistors It has a typical dynamic output impedance of 0.2W activeoutput circuitry provides a very sharp turn oncharacteristic, making these devices excellentreplacement for zener diodes in many applications.
Parametrics
Absolute maximum ratings: (1)cathode voltage: 37 V; (2)cathode current range (continuous): -100 to +150 mA; (3)reference input current range: -0.05 to +10 mA; (4)power dissipation D, Z suffix package: 770 mW, DIP package: 1000 mW; (5)operating temperature range: -25 to 85 ℃; (6)junction temperature: 150 ℃; (7)storage temperature range: -65 to +150 ℃.
Features
Features: (1)Programmable Output Voltage to 36 Volts; (2)Low Dynamic Output Impedance 0.20 Typical; (3)Sink Current Capability of 1.0 to 100mA; (4)Equivalent Full-Range Temperature Coefficient of; (5)Temperature Compensated for Operation Over 50ppm/℃ Typical; (6)Low Output Noise Voltage; (7)Fast Turn-on Response.

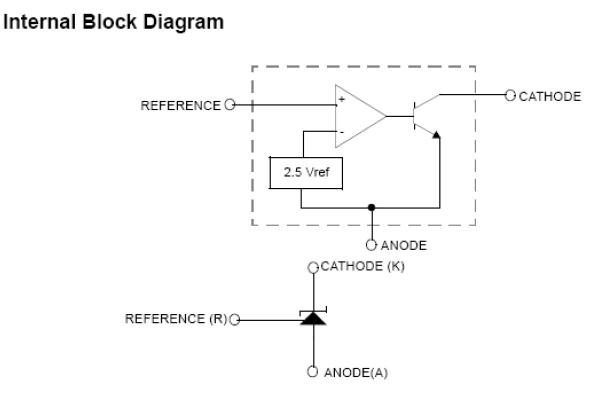

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 KA431ZTA |
Fairchild Semiconductor |
Voltage & Current References Shunt Regulator 2.5V Programmable |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
KA431 |
Fairchild Semiconductor |
Voltage & Current References Prob Shunt Reg 0.2 |
Data Sheet |
Negotiable |
|
||||||||||||
|
KA431_Q |
Fairchild Semiconductor |
Voltage & Current References Prob Shunt Reg 0.2 |
Data Sheet |
Negotiable |
|
||||||||||||
 |
KA431A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
KA431ADTF |
Fairchild Semiconductor |
Voltage & Current References Shunt Regulator 2.5V Programmable |
Data Sheet |
|
|
||||||||||||
|
KA431AZBU |
Fairchild Semiconductor |
Voltage & Current References Shunt Regulator 2.5V Programmable |
Data Sheet |
|
|
||||||||||||
|
KA431AZMTA |
Fairchild Semiconductor |
Voltage & Current References PROGRAMABLE SHUNT 1% |
Data Sheet |
Negotiable |
|
||||||||||||
