Product Summary
The Bourns Model P850-U180-WH product is high speed, unidirectional protection component, constructed using MOSFET semiconductor technology, designed to protect against faults caused by short circuits, AC power cross, induction and lightning surges. The TBU high speed protector, triggering as a function of the MOSFET, blocks surges and provides an effective barrier behind which sensitive electronics are not exposed to large voltages or currents during surge events. The TBU device is provided in a surface mount DFN package and meets industry standard requirements such as RoHS and Pb Free solder refl ow profi les.
Parametrics
Absolute maximum ratings: (1)Vimp, Maximum protection voltage for impulse faults with rise time ≥ 1 μsec: 850V; (2)Vrms, Maximum protection voltage for continuous Vrms faults connected as a series pair (refer to page 3 Test Confi guration Diagram): 425V; (3)Top, Operating temperature range: -40 to +85 ℃; (4)Tstg, Storage temperature range: -65 to +150 ℃.
Features
Features: (1)Formerly FulTec brand; (2)Extremely high speed performance; (3)Blocks high voltages and currents; (4)Low insertion loss; (5)Two TBU protectors in one small package; (6)Very high bandwidth; GHz compatible; (7)RoHS compliant, UL Recognized.

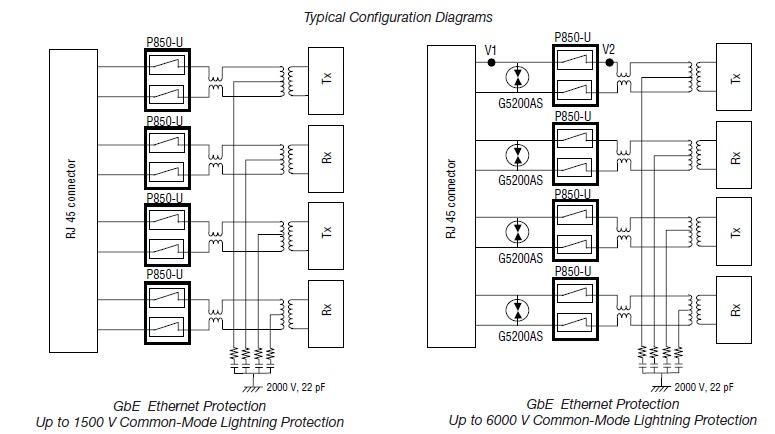

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 P850-U180-WH |
Bourns |
Surge Suppressors 180mA 850Vimp |
Data Sheet |
|
|
||||||||||||
 |
P850-U180-WHX |
|
CIRCT PROT ETH 180MA 850VIMP TBU |
Data Sheet |
Negotiable |
|
||||||||||||
