Product Summary
The CD4047BM96 is a CMOS low-power Monostable/Astable multivibrator. It is capable of operating in either the monostable or astable mode. It requires an external capacitor (between pins 1 and 3) and an external resistor (between pins 2 and 3) to determine the output pulse width in the monostable mode, and the output frequency in the astable mode.
Parametrics
Absolute maximum ratings: (1)DC Supply Voltage (VDD): -0.5V to +18VDC; (2)Input Voltage (VIN): -0.5V to VDD +0.5VDC; (3)Storage Temperature Range (TS): -65℃to +150℃; (4)Power Dissipation (PD): Dual-In-Line: 700 mW, Small Outline: 500 mW; (5)Lead Temperature (TL) (Soldering, 10 seconds): 260℃.
Features
Features: (1)low power consumption: specisl CMOS oscillator configuration; (2)monostable (one-short) or astable (tree-running) operation; (3)true and complemented buffered outputs; (4)only one external R and C required; (5)buffered inputs.

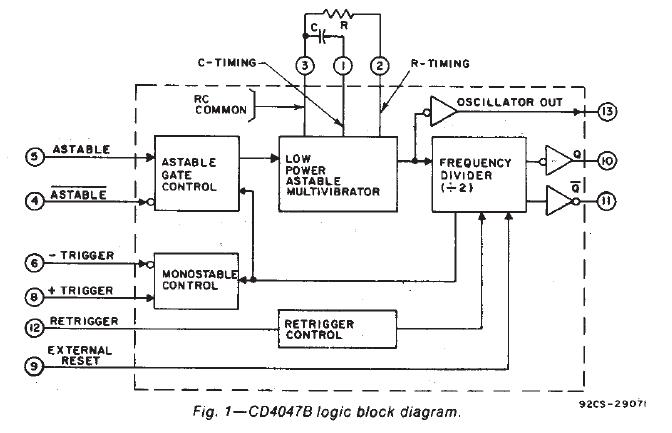

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

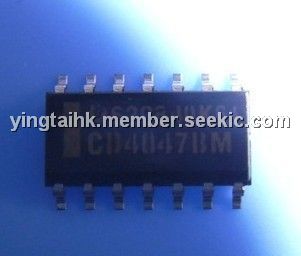

 CD4047BM96 |
Texas Instruments |
Monostable Multivibrator CMOS Lo-Pwr Mono/A- stable Multivibrator |
Data Sheet |
|
|
||||||||||||
|
CD4047BM96E4 |
Texas Instruments |
Monostable Multivibrator CMOS Lo-Pwr Mono/A- stable Multivibrator |
Data Sheet |
|
|
||||||||||||
|
CD4047BM96G4 |
Texas Instruments |
Monostable Multivibrator CMOS Lo-Pwr Mono/A- stable Multivibrator |
Data Sheet |
|
|
||||||||||||
